DAC8800FSZ-REEL
Manufacturer:
Analog Devices
Mfr.Part #:
DAC8800FSZ-REEL
Datasheet:
Description:

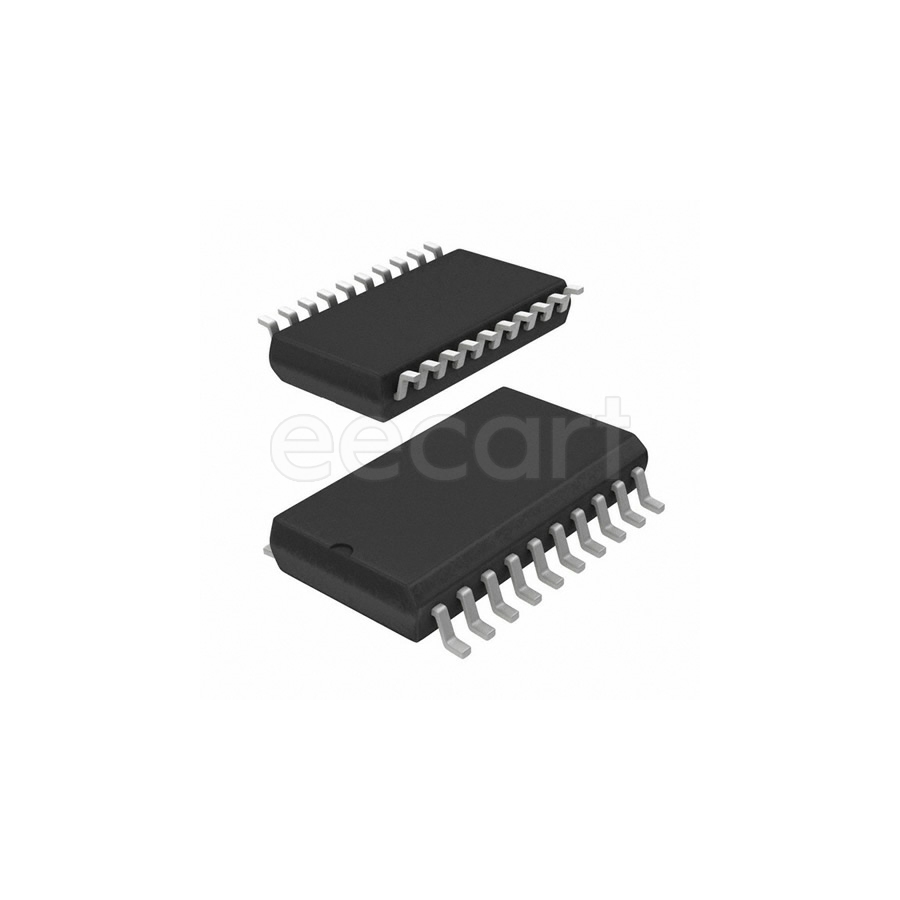

Digital to Analog Converters (DACs) SOIC-20 SMD/SMT number of channels:8 number of bits:8 Number of D/A Converters:8
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 20 |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Interface | SPI, Serial |
| Min Input Voltage | 0 V |
| Operating Supply Voltage | 12 V |
| Output Type | Voltage |
| Lifecycle Status | Production (Last Updated: 3 weeks ago) |
| Max Power Dissipation | 12 mW |
| Max Supply Voltage | 16 V |
| Min Supply Voltage | 4.5 V |
| Power Dissipation | 12 mW |
| Number of Channels | 8 |
| Number of Bits | 8 |
| Supply Type | Dual |
| Number of DAC Channels | 8 |
| Max Input Voltage | 12 V |
| Sampling Rate | 1.25 Msps |
| Number of Converters | 8 |
| Settling Time | 800 ns |
| Min Output Voltage | 0 V |
| Resolution | 8 bit |
| Max Output Voltage | 5 V |
| Number of D/A Converters | 8 |
| Conversion Rate | 1.25 Msps |
| Differential Output | No |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) |
| RoHS | Compliant |
| Packaging | Reel |
| Reference Type | External |
| Interface Type(Data Interface) | SPI |
| Analog Supply Voltage | 4 V to 16 V, -12 V |
| Core Architecture(core/core processor) | String DAC |
Stock: 222
Distributors
pcbx
pcbxUnit Price$21.93236
Ext.Price$21.93236
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $21.93236 | $21.93236 |
| 10 | $16.17697 | $161.76970 |
| 25 | $14.80396 | $370.09900 |
| 50 | $14.78666 | $739.33300 |
| 100 | $14.76938 | $1476.93800 |
| 300 | $14.75212 | $4425.63600 |
| 500 | $14.73488 | $7367.44000 |
| 1000 | $14.71761 | $14717.61000 |
